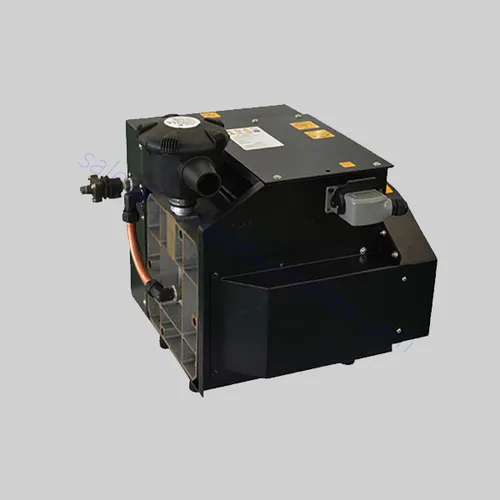

Vehicle Mounted Oil-Free Scroll Air Compressor Of CMW Series
Ultra-quiet design Simple and convenient The main unit can be matched with any equipment that needs compressed air Oil-free: No need for any lubricating oil Stable and reliable: Lubricating grease is added once a year Low consumables: Only the air filter and sealing elements are consumables. CMW Series CMW03-1.0 Vehicle Oil-free Scroll Air Compressor Technical Parameters CMW03-1.2 Transmission Mode Direct Mounting F.A.D 0.25m³/Min 0.24m³/Min Max. Processing Technology… FOB Price: USD 0.5- 9,999 / Piece Min. MOQ: 100pcs/piece Supply Ability: 10000pcs per month Payment Terms: L/C, D/A, D/P, T/T
Oil-Free Scroll Air Compressor
An oil-free scroll air compressor is a type of air compressor that does not use oil for lubrication. Instead, it uses a scroll technology that compresses air by using two interlocking scrolls that rotate against each other.
One of the advantages of this type of compressor is that it produces oil-free air, making it suitable for applications that require clean and dry air. Oil-free compressed air is particularly important for industries such as pharmaceuticals, food and beverage, and electronics manufacturing, where contamination could compromise product quality.
Oil-free scroll air compressors are also known for their quiet operation and low maintenance requirements. They are typically smaller and more lightweight than oil-lubricated compressors, which makes them ideal for applications where space is limited.
Although they have a higher upfront cost than oil-lubricated compressors, oil-free scroll air compressors can provide long-term cost savings due to their lower maintenance requirements and energy-efficient operation.
Features of Vehicle-Mounted Oil-Free Scroll Air Compressor
1. Ultra-quiet design, easy to use
2. The main unit can be matched with any equipment that needs compressed air
3. Oil-free: no need for any lubricating oil
4. Stable and reliable: lubricating grease is added once a year
5. Low consumables: only the air filter and sealing elements are consumables.
Technical Parameters of Vehicle Mounted Oil-free Scroll Air Compressor of Cmw Series
| Model |
CMW03-1.0 |
CMW03-1.2 |
|
|
Driveway |
Direct mounted |
||
|
F.A.D |
0.25m³/min |
0.24m³/min |
|
|
Max. working pressure |
1.0MPa |
||
|
Min working pressure |
0.6MPa |
||
|
Motor power |
3.0kW |
3.0kW |
|
|
Shaft power |
2.2kW |
2.7kW |
|
|
Max. discharge temperature |
70℃ |
||
|
Working temperature |
-25℃～+45℃ |
||
|
Cooling way |
Air cooling |
||
|
Oil content of discharge air |
0ppm |
||
|
Voltage |
3PH/380V/50Hz |
||
|
Max. current |
5.0A |
6.0A |
|
|
Protection level |
IP65 |
||
|
Insulation level |
F |
||
|
Dimension mm |
490×460×440mm |
445×430×440mm |
|
|
Connection |
Inner screw RC3/8’’ |
||
|
Weight |
43kg |
45kg |
|
|
Noise |
65dB(A) |
65dB(A) |
|
Applications for Industrial Oil-Free Air Compressors
Oil-free compressed air is a powerful production method for companies that need to produce products with air purity and product safety in mind. Oil-free compressors are always ISO Class Zero certified and provide a 100% oil-free air supply for sensitive applications. Some industry application examples include:
- Automotive: Oil-free compressed air creates high-quality automotive paint finishes in a smooth process.
- Food and beverage: The oil-free approach creates healthier foods while also eliminating any possibility of oil contamination.
- Chemical: The chemical industry benefits from oil-free air compressors as these machines increase purity, reduce waste and increase safety.
- Electronics: Oil-free methods are critical for electronics as they provide uninterrupted control systems in ultra-clean conditions for the production of delicate devices such as motherboards.
- Pharmaceuticals: Oil-free air compressors reduce the risk of oil contamination in pharmaceutical products and help improve production efficiency.
When you want to produce products in environments where oil contamination can cause equipment damage or lead to costly damage and recalls, oil-free air compressors are the perfect solution to achieve the highest standards of air purity.
Packaging Process
